Power Parameters
Input Power: AC100-240V
Power Frequency: 50/60Hz
Power Consumption: 365W
Load Capacity: AC-110V: 4 units | AC-220V: 8 units
LED Specifications
LED Source: 44 × 10W RGBW LEDs
Auxiliary Lights: 95 × 0.2W RGB LEDs
Average Lifespan: 50,000 hours
Lens Angle: 25°
Dimming: 0-100% Linear Dimming
Strobe: 1-25Hz (Built-in Multiple Strobe Effects)
Features
- 11 independently controllable LED zones
- 95 auxiliary lights with individual pixel control
- RGBW color mixing effects
- Built-in programs selectable via DMX controller or preset programs (speed adjustable)
- Cooling: 2 fans
Control & Display
Channel Modes: 7CH / 17CH / 329CH
Operating Modes: DMX / Standalone / Sound Control / RDM
Display: LCD Screen

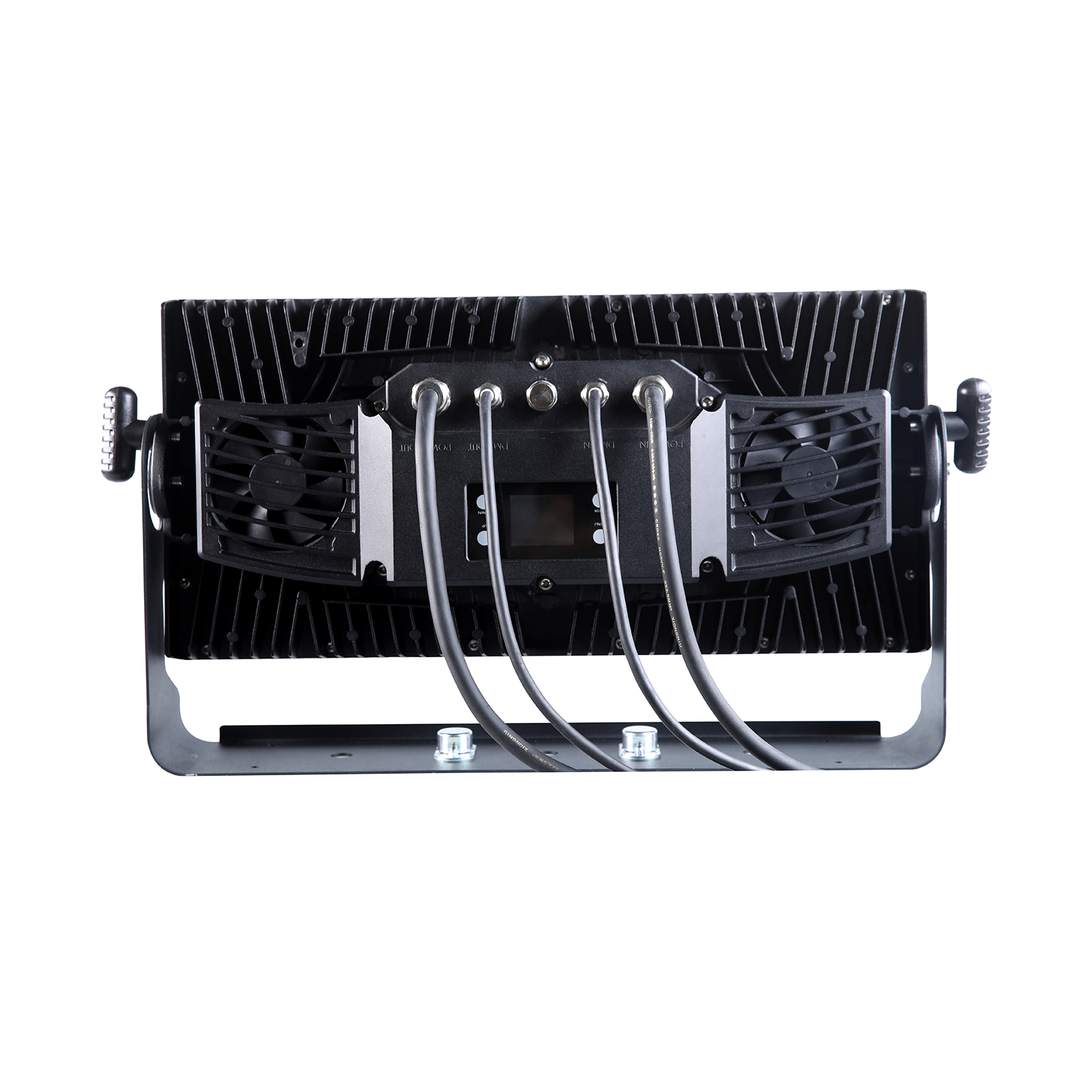

Connectors
DMX: Waterproof 3-pin XLR Input & Output
Power: Waterproof PowerCON Input & Output
General Specifications
Protection Rating: IP65
Max. Operating Temperature: 45°C
Cooling Method: Forced Air Cooling
Housing: Black
Dimensions & Weight
Product Size: 509 × 117 × 264 mm
Net Weight: 10.2 kg
